Conveying & Hoisting Solutions has an extensive range of materials handling equipment available for hire.

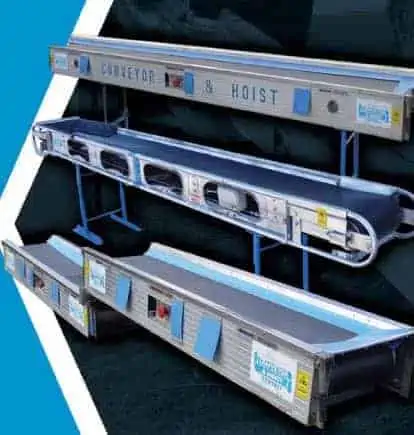

With one of the largest range of Conveyor Belts for hire in Australia, choose from our Industrial Steel Flatbed Conveyor, Industrial Steel Trough Conveyor, Lightweight Aluminium Flatbed Conveyor or Lightweight Aluminium Trough Conveyor.

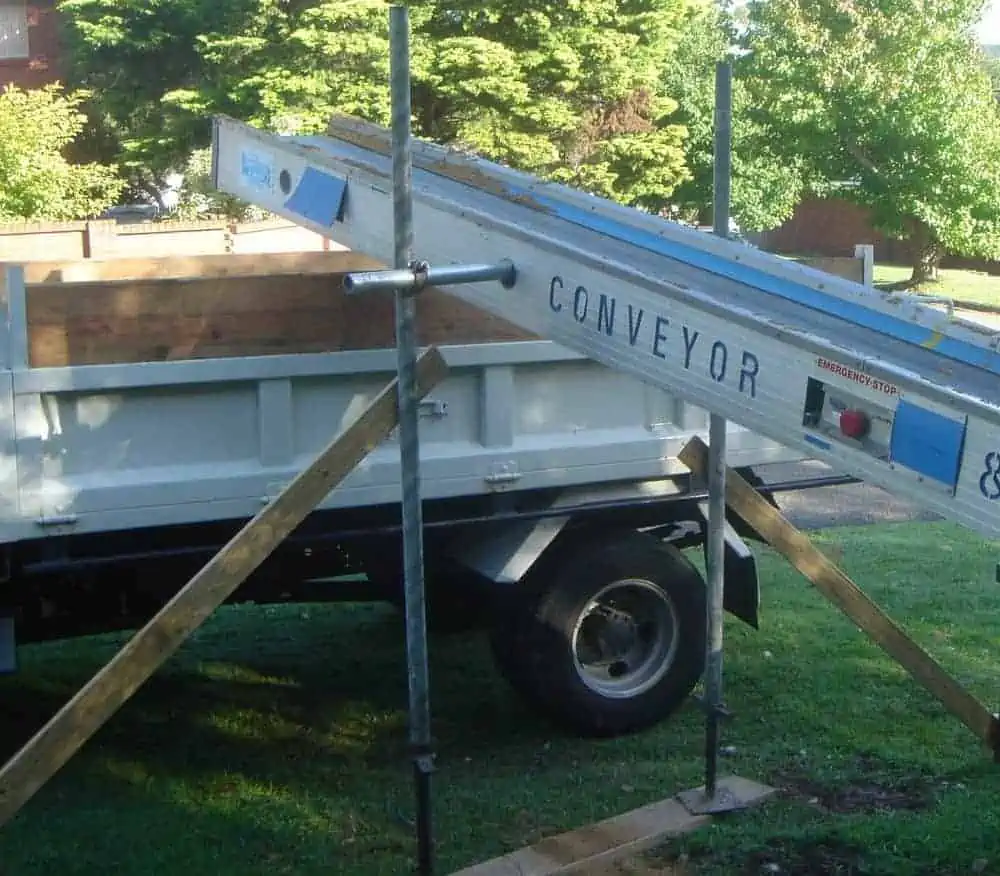

Our Lightweight Aluminium Trough Conveyor is available in 3 metre, 4 metre or 6 metre lengths. Suitable for earth moving, landscaping, construction, pool, mining, quarry, or any DIY projects.

If you are looking to hire or rent a Lightweight Aluminium Trough Conveyor, please contact us today.

Call us today! 02 9707 2797

Features

  • Lightweight
  • Handles 18 tons of soil per hour
  • Easy to move (two person move)

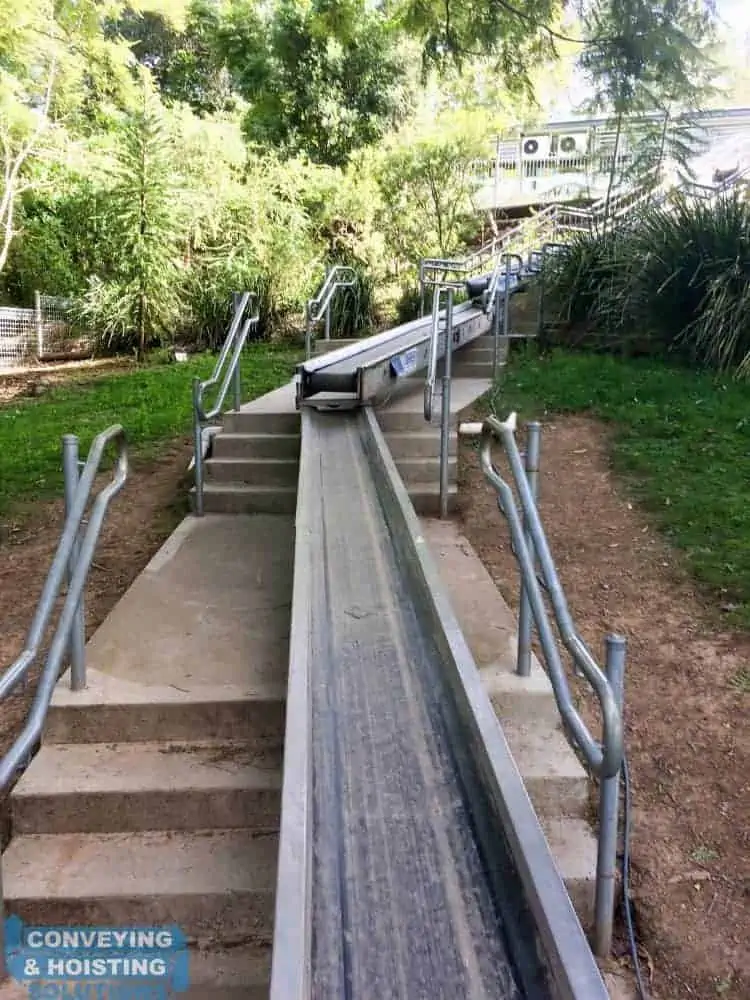

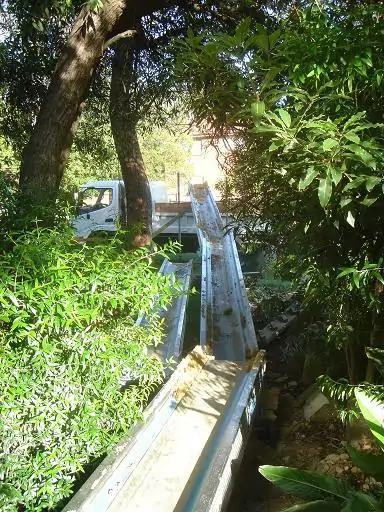

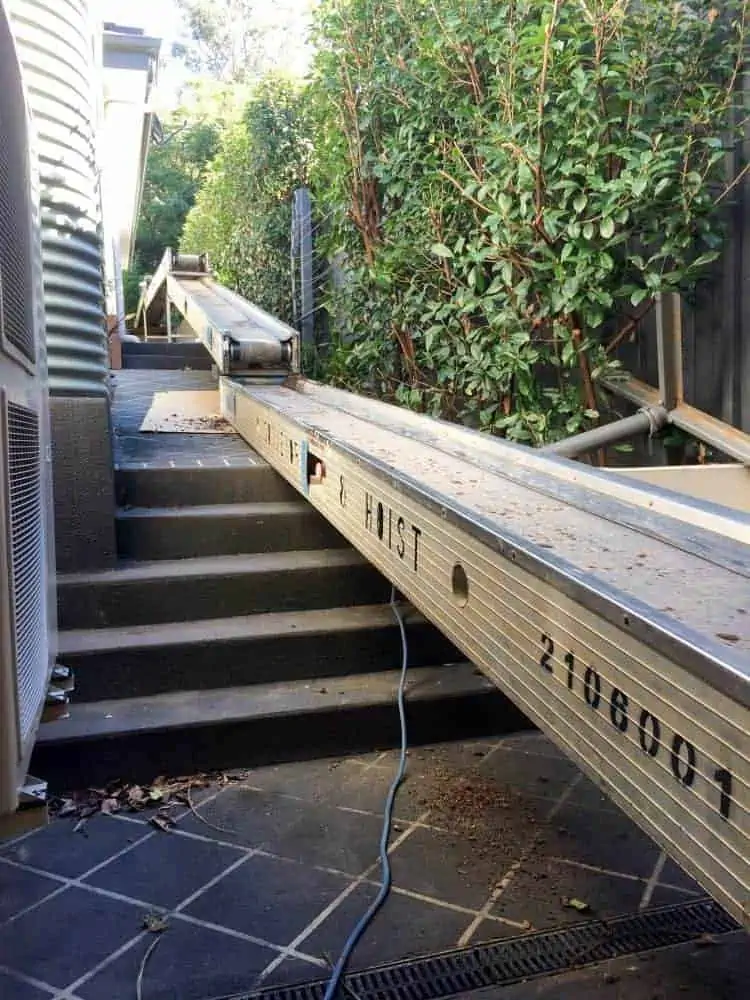

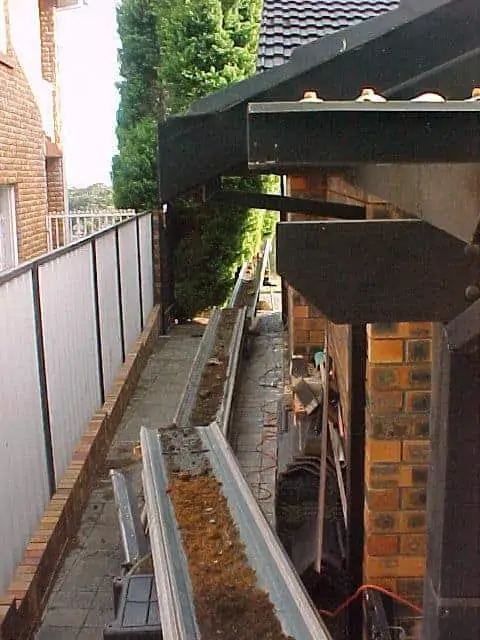

  • Accessible down narrow passages where machines cannot access
  • Transportable via Ute

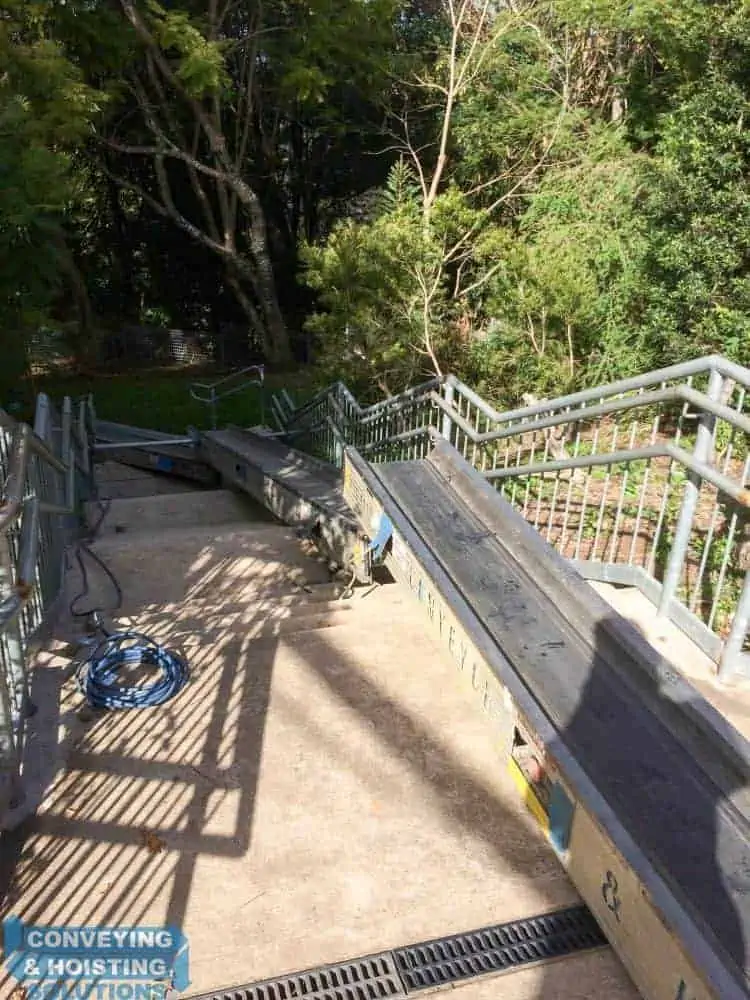

  • Lightweight 240V powered units can be daisy chained together (up to a maximum of 2 machines) with start or stop performed from any one of the daisy chained units
  • Aluminium units can run from as little as 5kVa generator

Optional Extras

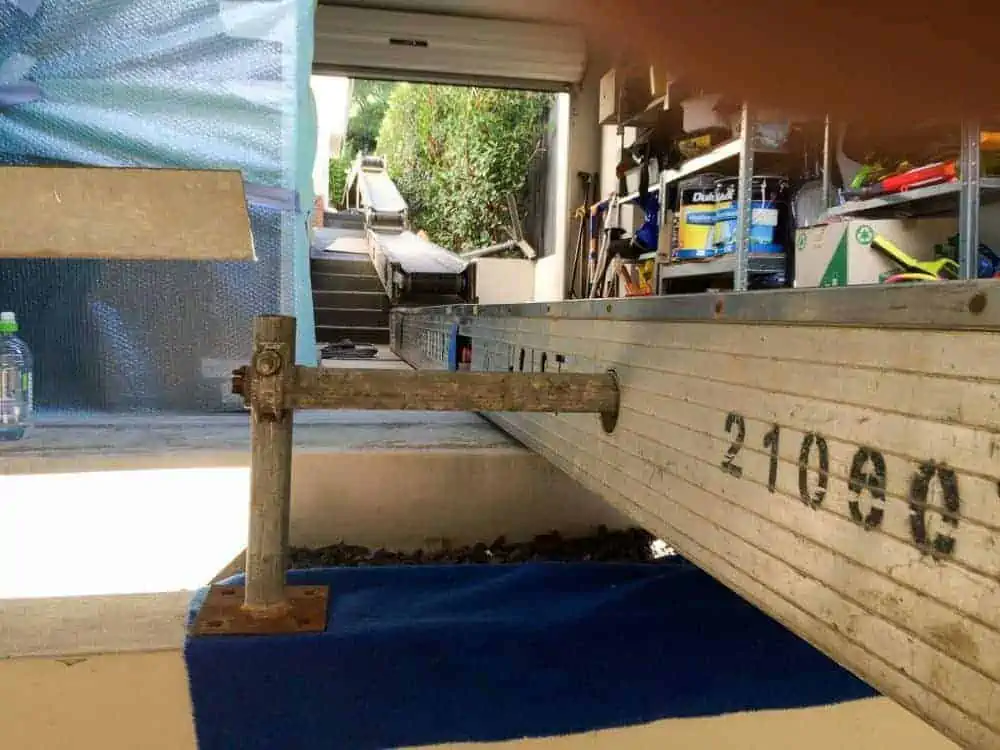

  • Conveyor stands
  • Large Hoppers for bulk light material.





Conveyor Stand 50

Small Adjustable Stand

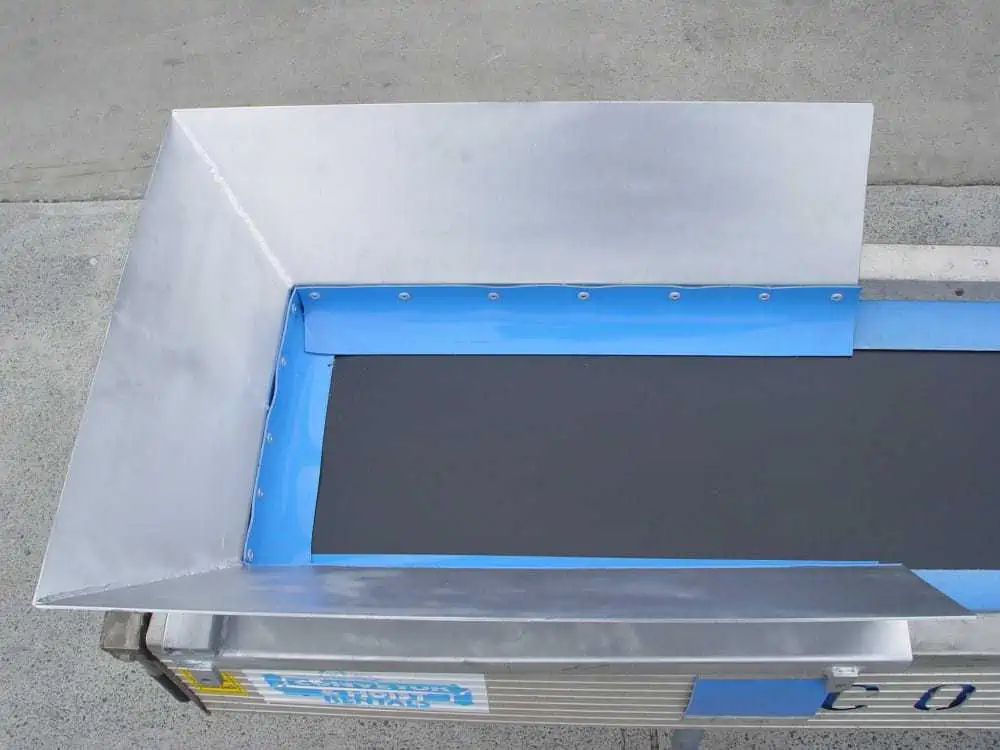

Trough Hopper

Hopper

Specifications

Conveyor TypeLength (m)Width (mm)Max SlopeMass (kg)Max CapacityBelt Speed (m/min)Volume MovableCapacity (with soil)Power
Lightweight Trough3m500mm**25deg80kg115kg32 (m/min)19m3/hr18t/hr240V(10amp)
Lightweight Trough4m500mm**25deg90kg115kg32 (m/min)19m3/hr18t/hr240V(10amp)
Lightweight Trough6m500mm**25deg110kg115kg32 (m/min)19m3/hr18t/hr240V(10amp)

** Deduct 200mm for actual belt width.
