Conveying & Hoisting Solutions™ has an extensive range of materials handling equipment available for hire.

With one of the largest range of Conveyor Belts for hire in Australia, choose from our Industrial Steel Flatbed Conveyor, Industrial Steel Trough Conveyor, Lightweight Aluminium Flatbed Conveyor or Lightweight Aluminium Trough Conveyor.

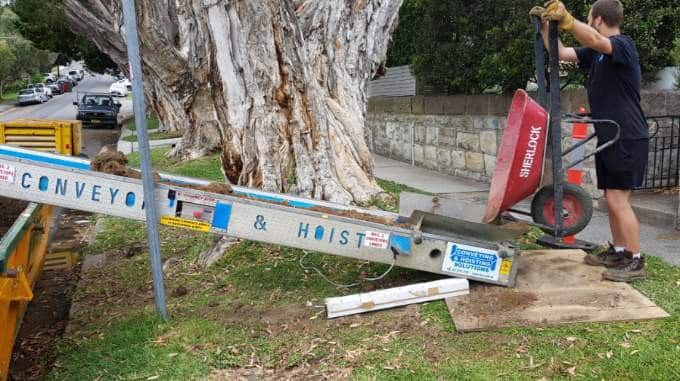

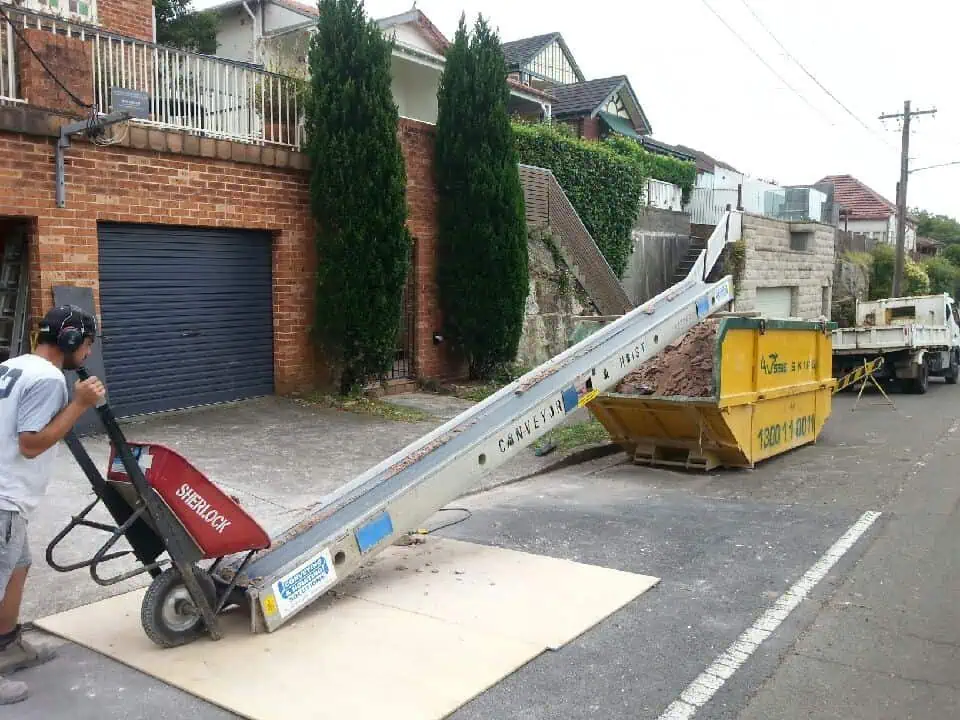

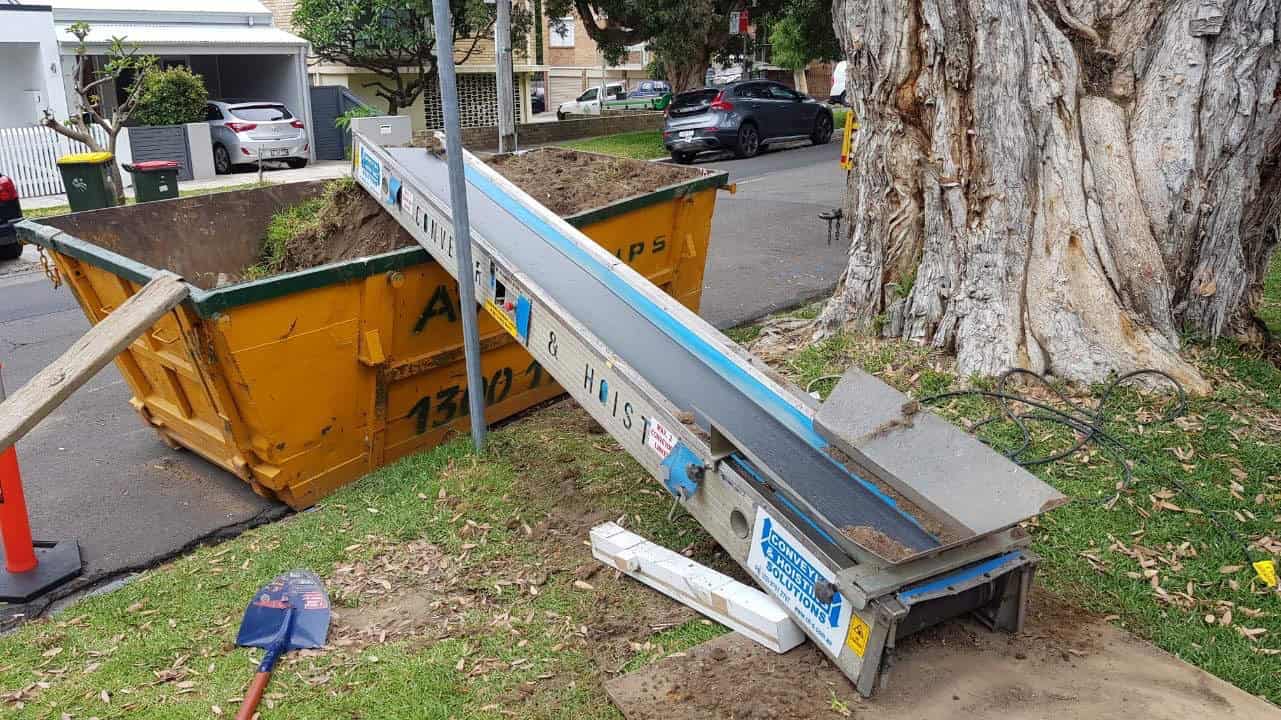

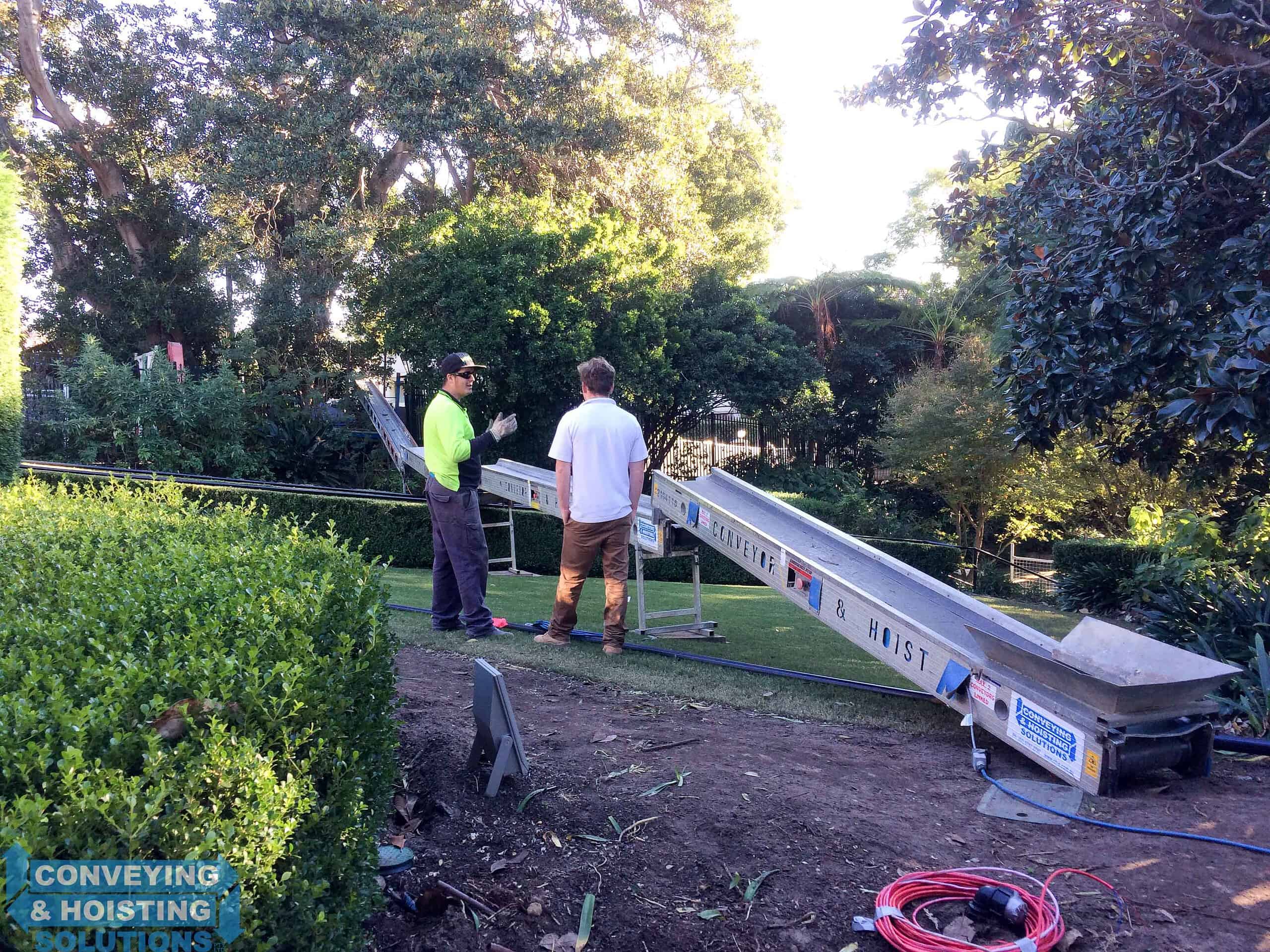

Our Australian Made Lightweight Aluminium Trough Conveyor is available in 3 metre, 4 metre or 6 metre lengths. Suitable for earthmoving, landscaping, construction, pool, mining, quarry, or any DIY projects.

If you are looking to hire or rent an Australian Made Lightweight Aluminium Trough Conveyor, please contact us today.

Call us today! 02 9707 2797

FEATURES

  • Lightweight
  • Australian Made for Australian Conditions
  • Handles 18 tons of soil per hour
  • Easy to move (two person move)
  • Accessible down narrow passages where machines cannot access
  • Transportable via Ute
  • Lightweight 240V powered units can be daisy chained together (up to a maximum of 2 machines) with start or stop performed from any one of the daisy chained units
  • Aluminium units can run from as little as 5kVa generator

Optional Extras

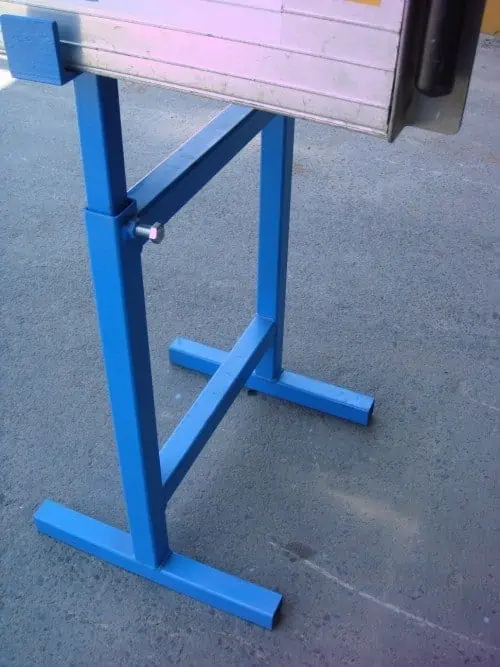

  • Conveyor stands
  • Large Hoppers for bulk light material

Specifications

Conveyor Type Length (m) Width (mm) Max Slope Max. Rise at 25deg Mass (kg) Max Capacity Belt Speed (m/min) Volume Movable Capacity (with soil) Power
Lightweight Trough 3m 500mm* 25deg 1.27m** 80kg 115kg 32 (m/min) 19m3/hr 18t/hr 240V(10amp)
Lightweight Trough 4m 500mm* 25deg 1.69m** 90kg 115kg 32 (m/min) 19m3/hr 18t/hr 240V(10amp)
Lightweight Trough 6m 500mm* 25deg 2.54m** 110kg 115kg 32 (m/min) 19m3/hr 18t/hr 240V(10amp)

* Deduct 200mm for actual belt width.
** Maximum height the raised end of the conveyor can reach when angled at 25 degrees
