‘The Workhorse’: the robust, versatile, high-capacity conveyor

Available in custom or fixed lengths

Conveying & Hoisting Solutions™ has an extensive range of materials handling equipment available for hire.

Durability, flexibility and large capacity makes this our most popular and versatile conveyor. ‘The Workhorse’ is designed to be modular, making it capable of reaching longer distances, even at inclines of up to 35 degrees.

And with an large throughput of up to 100 tons per hour, this robust conveyor solution makes easy work of shifting all types of rubble, soil and aggregate efficiently, making it the conveyor of choice for many industries, including Animal feeds & agriculture, Building & construction, Composting & biomass, Demolition, Excavation, Rail, Recycling, Water treatment works

Reliable, versatile and ideal for large capacities, if you are looking to hire or rent a 600mm Heavy Duty Conveyor, please contact us today.

Call us today! (02) 9707 2797

contact us

  • Transports up to 100 tonnes per hour
  • Adaptable for various applications
  • Modular design
  • Operates at angles up to 35 degrees

Specifications

  • 600mm wide belt
  • Conveyor profile: 400mm x 700mm
  • Adaptable modular design
  • Operates at angles up to 35 degrees
  • Feed by hand, wheelbarrow or machine
  • Robust construction
  • Durable, galvanised finish
  • Belt speed: 0.3m/s – 0.9m/s (set to 0.9m/s by default, variable speed available upon request)
  • Capacity: up to 100tph
  • Voltage: 415v

































1
1

contact us

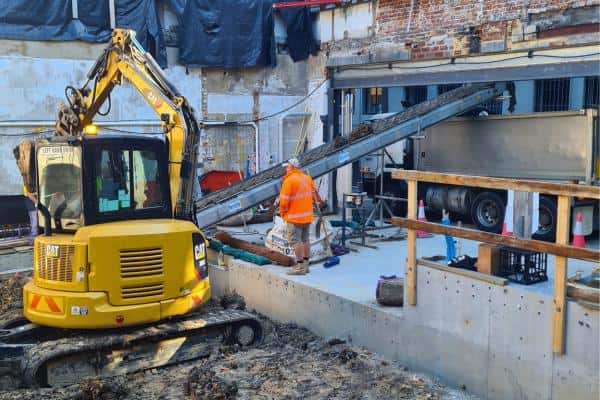

See it in action

Specifications

Length Width Max Slope Mass (kg) Belt Speed (m-min) Max Volume Movable Power
2.86 625mm 35° 238 18- 54 (m-min) 100tph 415v
4.06 625mm 35° 291 18- 54 (m-min) 100tph 415v
5.26 625mm 35° 343 18- 54 (m-min) 100tph 415v
6.46 625mm 35° 396 18- 54 (m-min) 100tph 415v
7.66 625mm 35° 448 18- 54 (m-min) 100tph 415v
8.86 625mm 35° 501 18- 54 (m-min) 100tph 415v
10.06 625mm 35° 553 18- 54 (m-min) 100tph 415v
11.26 625mm 35° 606 18- 54 (m-min) 100tph 415v
12.46 625mm 35° 658 18- 54 (m-min) 100tph 415v
13.66 625mm 35° 711 18- 54 (m-min) 100tph 415v
14.86 625mm 35° 763 18- 54 (m-min) 100tph 415v
Section L (mm) W (mm) H (mm) Kg
Tail Unit 1505 930 285 85
Head Unit (with motor) 1525 1015 300 120
Base Tension Unit 1545 730 285 93
1.2m Section 1350 620 285 43
2.4m Section 2550 625 285 85
Small Steel Hopper 785 850 300 16
Large Steel Hopper 940 940 500 30
Belt Weight Per/m Variable 600 15 7.8
